How does it do that?

A flat plate of glass does not magnify. To magnify an image, the glass must have a curved shape, like a magnifying glass does. The name "lens" comes from the Latin word for the lentil, a seed which has a shape of a disk whose top and bottom surfaces curve outward.

But the Fresnel lens we used in the marshmallow roaster appears to be flat. This is because a special trick is used to make a flat magnifier.

Remember that we said a flat plate of glass does not magnify.

Inside a normal lens, we can draw many rectangular areas. These areas are glass, but since they have flat edges, they do not help the lens magnify. So they are not useful for the purpose of a magnifier, and simply add unnecessary weight and cost to the lens.

The second part of the drawing below shows what is left if we remove the useless parts, and only keep the parts of the lens that magnify.


One side of our resulting"lens" is flat. But the other side has ridges with curved sides. These curved pieces of glass (or plastic in our Fresnel lens) bend the light in the same way as the original lens did. This discussion of how Fresnel lenses work is actually a simplification of what is really going on. We will explain in more detail later.

If you rub the Fresnel lens with your fingers, you can feel these ridges.



Absorption


Concentrating the sunlight is only half of what is going on in the roaster. The other half is what happens when the light hits the marshmallow.

The marshmallow is white. It reflects almost all of the light that hits it. Only a small fraction of the light is absorbed. When light is absorbed by a material, it is not lost. The energy from the light moves the molecules of the marshmallow. Moving molecules is what we feel as heat.

In order to heat up the marshmallow, we had to use the very smallest dot of light from the lens, where all of the sunlight is concentrated into one tiny spot. The small fraction of the light that the marshmallow absorbs is now enough to heat up the marshmallow until it burns at that spot.

But now the burned part of the marshmallow is no longer white. It no longer reflects very much light. That is why it appears black. Black objects are those that absorb much more light than they reflect.

Now that the spot is absorbing most of the sunlight, it gets hot very quickly. If we don\\\\\\\'t move the marshmallow, it will catch fire.

We move the marshmallow closer to the lens, so the circle of light from the lens is bigger, and thus less concentrated. It is still concentrated enough to roast the black spot on the marshmallow, and make it bigger.

By coating the marshmallow with a dark substance, like chocolate syrup or cocoa, we can speed up the heating of the marshmallow.



More about Fresnel lenses


Our discussion about how Fresnel lenses work, we gave the standard textbook explanation, which explains the concept, but misses some details that are important if you want to do real work with the lens.

In the simplified example, we simply moved the curved pieces down to lie flat. But a curve that is designed to focus light onto a point depends on the middle of the lens being farther away from the focal point than the edge. If we simply moved the pieces down, they would not focus the light to a point. The edges would focus the light to the same point as before, but as we move to the center of the lens, the focal point moves farther away, by the same amount that we moved the pieces down.

Real Fresnel lenses compensate for this. The curves are made to keep the focus at the same point, regardless of how close to the center of the lens a light ray is.

Fresnel lenses are usually flat on one side. The corrections made to keep the focus at a point only work from one direction. The lenses are most commonly made to focus light in such a way that the grooved side must face the sun, and the flat side must face the focal point. If the lens is reversed, it will not focus to a sharp point. The edges will focus too close, and the center will focus too far away. This is why we said to make sure the grooved side of the lens faced outside the box (towards the sun).



Fresnel lens:

Spot fresnel lens come in different sizes and can be used in a many of uses.  It is a flat on one side and the other size engraved on the circle .

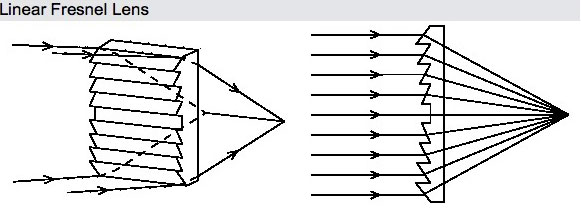

Linear lenses produce a longer flat focal pattern ranging from 1 inch high by 3 inches wide up to 8 inches wide.  Less chance of damaging equipment if liquid evaporates.  Long beam can be spread the length of a pipe.  Powers a Steam Engine slower but more safely.
